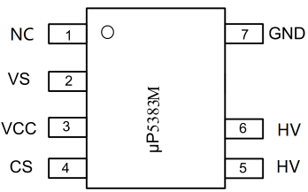

uP5383 PSR Switcher

(1) Built-in 2.5Ω/650V Mosfet; (2) PSR Switcher up to 15W

下载

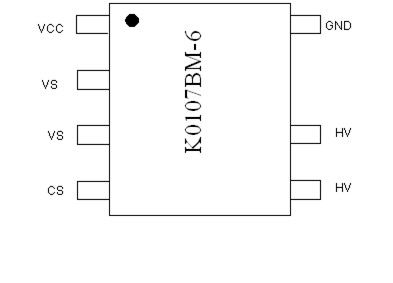

K0107BM-6 datasheet

(1) 800V/0.8A BJT; (2)Out power up to 5W; (3) Chargers and Adapters

下载
uP5328 datasheet

uP5328 PSR Switcher (1) Built-in 2Ω/650V Mosfet; (2) PSR Switcher up to 24W

下载
uP2324KA datasheet

uP2324 PSR Controller (1) External Mosfet; (2) Output up to 45W

下载

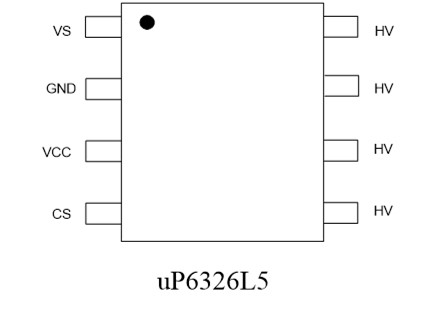

uP6326L5 datasheet

(1) 700V/5A BJT; (2) 30mW of Standby Power;(3)Out power up to 15W; (4) Power Tools and Other Battery Chargers

下载
uP6321M

(1) 800V BJT; (2) 30mW/75mW of Standby Power;(3)Out power up to 2W; (4) Battery Chargers and Adapters

下载
uP7358

(1)Charger Indicator; (2)Lossless load current detection; (3)Programmable load current for LED indicator color change

下载

uP7218M-45 SR IC

(1) Built-in 7mΩ/45V MOSFET; （2）Support DCM,CCM and QR Mode

下载
uP7218M-101 datasheet

(1) Built-in 9mΩ/100V MOSFET; （2）Support DCM,CCM and QR Mode

下载
uP7218M-70

(1) Built-in 14mΩ/70V MOSFET; （2）Support DCM,CCM and QR Mode

下载
uP7218M-

下载
uP2281

1) SSR Controller ; (2)Output Power up to 120W; (3) Adapter applications

下载
uP5298

1) SSR Switcher with built-in 1.2Ω/650V MOSFET ; (2)25W Output Power; (3) Power tools, PD, and other adapter applications

下载
uP5236

(1) SSR Switcher with built-in 0.9Ω/650V MOSFET ; (2)33W Output Power; (3) Power tools, PD, and other adapter applications

下载

uP5522 datasheet

(1) PD/QC Switcher with built-in 1Ω D-GAN; (2)33W Output Power; (3) 3.5mW of Input Power

下载
uP5525 datasheet

(1) PD/QC Switcher with built-in 0.48Ω D-GAN; (2)45W Output Power; (3) 3.8mW of Input Power

下载
uP5529 datasheet

(1) PD/QC Switcher with built-in 0.24Ω D-GAN; (2)70W Output Power; (3) 3.8mW of Input Power

下载

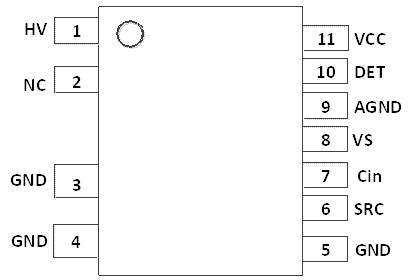

uP5585 datasheet

(1) PD/QC Switcher with built-in 0.2Ω D-GAN; (2)90W Output Power; (3) 3.8mW of Input Power

下载

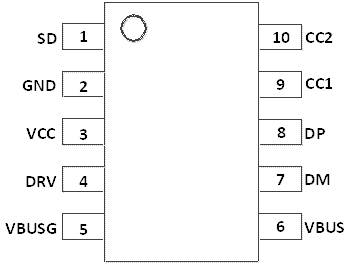

uP7520 datasheet

(1) SR controller with built-in PD Protocol; (2) Supports USB PD3.0 PPS and QC2.0/3.0

下载
uP7510

(1) SR controller with built-in PD Protocol; (2) Supports USB PD3.0 PPS, QC2.0/3.0,or I2C communication with third-party protocol chips

下载

uP431HAN

(1) 2.495V voltage with 0.3% tolerance; (2)Temperature drift: 5mV; (3) IK(min):0.1mA; (4)Sink current up to 80mA

下载
uP431U datasheet

(1) 2.495V voltage with 0.4%/0.5% tolerance; (2)Temperature drift: 5mV; (3) IK(min):0.1mA; (4)Sink current up to 100mA

下载
uP432 datasheet

(1) 1.25V voltage with 0.5% tolerance; (2)Temperature drift: 3mV; (3) IK(min):0.055mA; (4)Sink current up to 100mA

下载
uP78L05CR

(1) 5V voltage with +/-1% tolerance; (2)Output current: up to 150mA; (3) Low quiescent current: 1.5mA; (4) Low dropout voltage: 1.6V

下载
uP78L05HCR

(1) 5V voltage with +/-1% tolerance; (2)Output current: up to 200mA; (3) OTP: 160 centigrade; (4) Low dropout voltage: 1.7V

下载

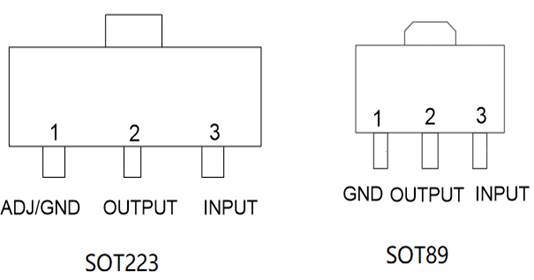

uP1117A

(1) Low dropout regulators :1.3V; (2)Voltage tolerance: +/-1%; (3)Output current: up to 800mA;(4) Output voltage: 1.8V,2.5V,3.3V,5V, ADJ

下载
uP1117

(1) Low dropout regulators :1.3V; (2)Voltage tolerance: +/-1%; (3)Output current: up to 1000mA;(4) Output voltage: 1.8V,2.5V,3.3V,5V, ADJ

下载
uP358

(1) dual OPA; (2)VCC:3V to 36V; (3) Low Offset Voltage; (4) Applications:Battery chargers, Power supplies,communications

下载
uP7320B

(1)CC&CV Controller; (2)Vref:2.5V,Vsense:50mV; (3)VCC:3.5V to 40V;(4)Pin-to-pin with -4320

下载
uP7312

(1)CC&CV Controller; (2)Vref:1.21V,Vsense:70mV; (3)VCC:1.7V to 40V;(4)Pin-to-pin with -4312
